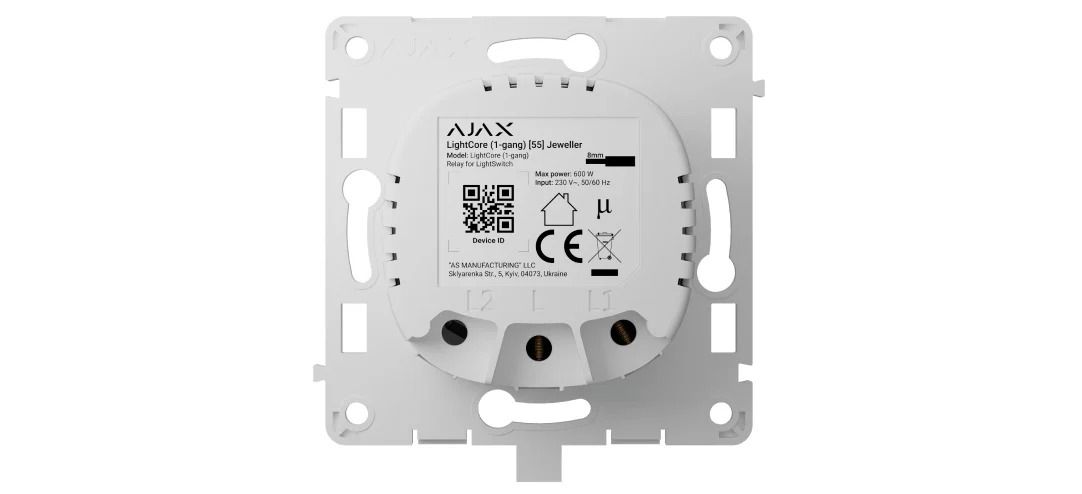

Wireless smart switch mechanism Ajax LIGHTCORE 1-GANG 45110.142.NC (1-gang)
Product Code: AJLIGHTCORE1GANG
The photo is for illustration only. Please refer to the description for exact product specifications.
Warehouse in Europe
94%+ positive feedback
30 day money back guarantee
Product description
Wireless smart switch mechanism Ajax LIGHTCORE 1-GANG 45110.142.NC (1-gang)
Specifications
Supplier product description
- Type: Wireless smart switch mechanism (1-gang)
- Model: 45110.142.NC
- Brand: Ajax Lightcore
- Operation: Smart touch single-button switch
- Components
- RelayLightCore (1-gang) Jeweller, Relay for a 1-gang switch., LightCore (1-gang) vertical Jeweller, Relay for a vertical 1-gang switch.
- Touch-sensitive panelsSoloButton (1-gang) It is used when the 1-gang switch is installed as a separate device. SoloButton consists of the front panel and the frame, coming as one component. CenterButton (1-gang) It is used when the 1-gang switch is installed between the device set. CenterButton (1-gang) vertical It is used when the vertical 1-gang switch is installed between the device set. SideButton (1-gang) It is used when the 1-gang switch is installed on the right or left of the device set. SideButton (1-gang) vertical It is used when the vertical 1-gang switch is installed on the top or bottom of the device set.
- FramesFrames for two, three, four, and five Ajax switches and outlets in any combination¹., Frame (2 seats) Frame (3 seats) Frame (4 seats) Frame (5 seats) Frame (2 seats) vertical Frame (3 seats) vertical Frame (4 seats) vertical Frame (5 seats) vertical, 1 — Combinations with outlets are available only in horizontal orientation.
- Configuration
- Single switchLightSwitch (1-gang) Jeweller is installed as a separate device.
- Combined switchLightSwitch (1-gang) Jeweller is combined as a set with Ajax smart switches and/or Outlet Jeweller devices and installed into Frame side by side., Learn more
- Communication
- Jeweller communication technologyProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote configuration via Ajax apps., Learn more
- Radio frequency bands866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
- Maximum effective radiated power (ERP)up to 20 mW
- Radio signal modulationGFSK
- Radio communication rangeup to 3,600 ft, Between the device and a hub (or range extender) in an open space., Calculate radio communication range at the facility
- Encrypted radio communicationAll the data stored and transmitted are protected by block encryption featuring a dynamic key.
- Radio frequency hoppingRadio communication uses frequency hopping to prevent interception and jamming., Learn more
- Key features
- Automation scenariossecurity mode change reactions, scheduled actions, alarm reactions, temperature scenarios, humidity scenarios², CO₂ concentration scenarios², by pressing another LightSwitch/Button, Learn more, 2 — Scenarios by humidity and CO₂ concentrations are available when LifeQuality Jeweller is added to the system.
- Operation without a neutral wireLightSwitch only needs a live wire to operate.
- Power of switched devicefrom 5 to 600 W
- Contactless touch-sensitive panelLightSwitch is activated when a hand gets as close as 15 mm from the panel.
- Night backlightOptional, can be turned off in the Ajax app device settings.
- Protection against incompatible devicesTriggers if lighting devices have insufficient power (up to 5 W). If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor.
- Sabotage protection
- Protection against spoofingdevice authentication
- Communication loss detectionafter 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more
- Power supply
- Power supply voltage230 V~, 50/60 Hz, The device does not need a neutral wire to operate.
- Average consumptionup to 200 mW
- Maximum power600 W, For LightCore (1-gang) Jeweller and LightCore (1-gang) vertical Jeweller.
- Current protectionmore than 2.6 A, If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.
- Temperature protectionmore than 140 °F, If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps.
- Operating parameters
- Operating temperature rangefrom 14 °F to 104 °F
- Operating humidityUp to 75% with no condensation
- Protection classIP20
- Form factor of the switchEuropean type (55)
- Dimensions
- RelayLightCore (1-gang) Jeweller — 3" × 2.85" × 1.15", LightCore (1-gang) vertical Jeweller — 2.85" × 3" × 1.15"
- Touch-sensitive panelsSoloButton (1-gang) — 3.26" × 3.26" × 0.4", CenterButton (1-gang) — 3.23" × 2.78" × 0.4", CenterButton (1-gang) vertical — 2.78" × 3.23" × 0.4", SideButton (1-gang) — 3.23" × 3" × 0.4", SideButton (1-gang) vertical — 3" × 3.23" × 0.4"
- FramesFrame (2 seats) — 3.26" × 6.04" × 0.25", Frame (3 seats) — 3.26" × 8.84" × 0.25", Frame (4 seats) — 3.26" × 11.63" × 0.25", Frame (5 seats) — 3.26" × 14.43" × 0.25", Frame (2 seats) vertical — 6.04" × 3.26" × 0.25", Frame (3 seats) vertical — 8.84" × 3.26" × 0.25", Frame (4 seats) vertical — 11.63" × 3.26" × 0.25", Frame (5 seats) vertical — 14.43" × 3.26" × 0.25"
- Weight
- RelayLightCore (1-gang) Jeweller — 1.62 oz LightCore (1-gang) vertical Jeweller — 1.62 oz
- Touch-sensitive panelsSoloButton (1-gang) — 1.59 oz CenterButton (1-gang) — 1.09 oz CenterButton (1-gang) vertical — 1.09 oz SideButton (1-gang) — 1.13 oz SideButton (1-gang) vertical — 1.13 oz
- FramesFrame (2 seats) — 0.57 oz Frame (2 seats) vertical — 0.57 oz Frame (3 seats) — 0.78 oz Frame (3 seats) vertical — 0.78 oz Frame (4 seats) — 1 oz Frame (4 seats) vertical — 1 oz Frame (5 seats) — 1.2 oz Frame (5 seats) vertical — 1.2 oz
Supplier parameters
Product code
AJLIGHTCORE1GANG
Brand
AJAX
Category
Smart devices
Supplier's product code
AJLIGHTCORE1GANG
Product ID
U-4680221
